Next level partnership

Small but powerful
250 kg on one fall (D8+) !
320 kg on one fall (D8) !

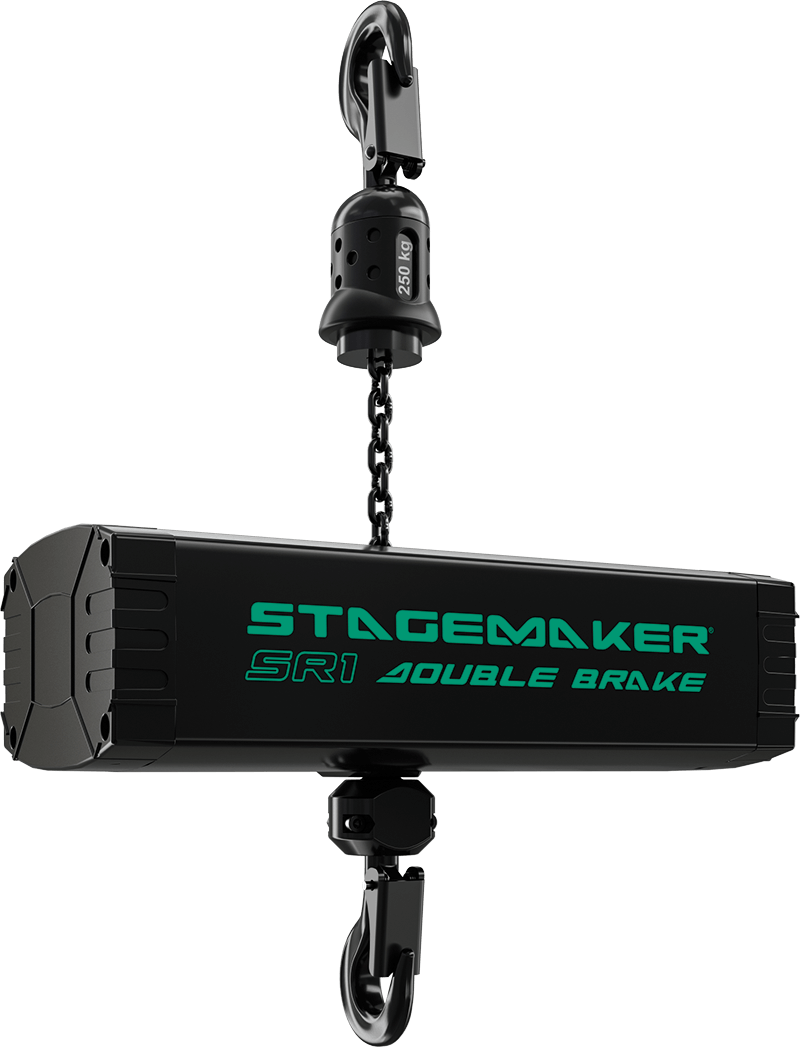

SR1 Stagemaker Doble Brake

Technical characteristics

  • 1 fall (200/250/320 kg) or 2 falls hoist (500 kg).
  • Lifting speed : 4 m/min (1 fall).
  • Center to center hoist.
  • Clutch on the safe side.
  • Same iconic design that actual SR range (oval shape).
  • Hoist body : 100% aluminum body, no plastic parts.
  • Double brake as standard
  • Rotating upper and lower hooks.
  • DIN hooks.
  • Rubber ergonomic grip on top hook.
  • IP55 Protection.
  • 4 x 11 chain.
  • Available in Version A (direct control),
  • Version B (Low voltage control).
  • Black CE P17 plug for better integration.
  • Black lifting chain.
  • Free maintenance brake.
  • RAL7021 epoxy paint.
  • Climbing hoist or industrial suspension configuration can be changed simply by reversing the chain container.
  • Perfect push : new patented concept,
  • 5 pocket load wheel, fitted with 5 intermediate teeth. This innovation provides improved chain guiding and chain flow, to help reduce the risk of chain jamming.
  • Chainflux as standard. Horizontal ejection of the chain.
  • Electric limit switch (on B version).

Options :

  • Version A or B.
  • Handles.

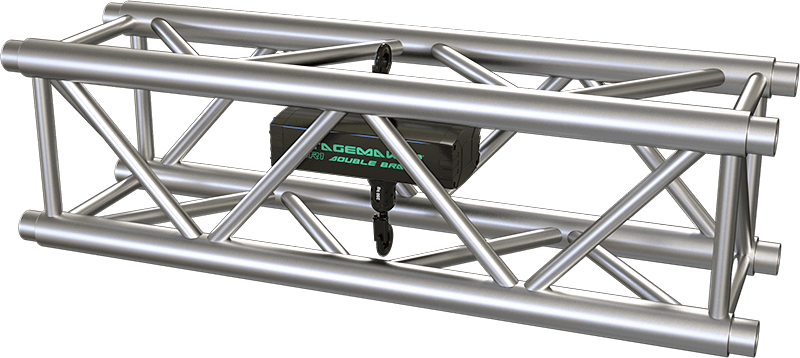

Stagemaker SR1 in a truss
Stagemaker SR1 double brake fits perfectly in a 12” truss.
