For loads up to 5000 kg

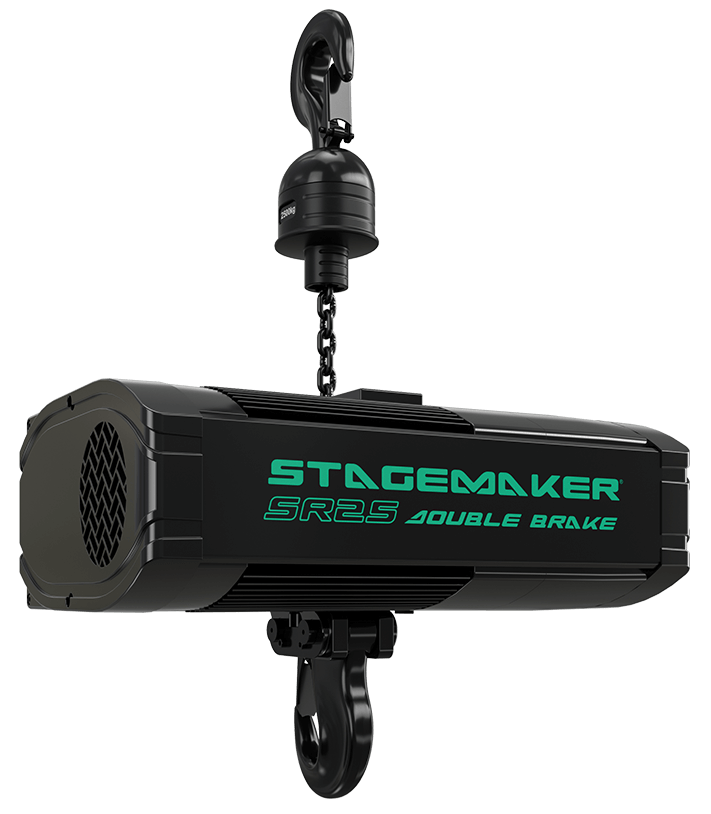

Stagemaker SR25

Version A : motor 3 phases with direct control

  • 3 phase hoists (400 V/415 V/3 Ph/50 Hz) with direct voltage control (ACF board)
  • BGV-D8 version
  • BGV-D8+ “ready” version
  • Complies with standards : CE, CSA, GOST
  • Easy changeover for using motor in climbing hoist configuration or industrial suspension
  • Hoist delivered with electro galvanized chain
  • “CHAINFlux MKII” specially designed chain guide
  • “PerfectPush” : new load wheel with 5 pockets and 5 intermediate guide teeth
  • Class F hoisting motor
  • Adjustable torque limiter
  • 2 brake system
  • Self adjusting, maintenance free, DC disk brake
  • Black painted hoist body (RAL 7021)
  • Rotating upper and lower hooks
  • Lifting hook has an ergonomic, rubber clad, gripping surface
  • High capacity, reversible chain bag
  • Standards connection cable : CE plug P17 type, 4 poles 16A (red : power supply/control)

Options :

  • 1 brake system
  • Available power supply : 460 V/3 Ph/60 Hz
  • Upper hook fixed and lower hook rotating (industrial suspension configuration)

Version B : motor 3 phases with low voltage control

  • 3 phase hoists (400 V/415 V/3 Ph/50 Hz) with low voltage control (48V)
  • BGV-D8 version
  • BGV-D8+ “ready” version
  • Complies with standards : CE, CSA, GOST
  • Easy changeover for using motor in climbing hoist configuration or industrial suspension
  • Hoist delivered with electro galvanized chain
  • “CHAINFlux MKII” specially designed chain guide
  • Electric limit switch
  • “PerfectPush®” : new load wheel with 5 pockets and 5 intermediate guide teeth
  • Class F hoisting motor
  • Adjustable torque limiter
  • 2 brake system
  • Self adjusting, maintenance free, DC disk brake
  • Black painted hoist body (RAL 7021)
  • Rotating upper and lower hooks
  • Lifting hook has an ergonomic, rubber clad, gripping surface
  • High capacity, reversible chain bag
  • Standards connection cable : CE plug P17 type, 4 poles 16A (red : power supply and yellow : control)

Options :

  • Electric limit switches (for version with industrial chain guide)
  • 1 brake system
  • Available power supply : 460 V/3 Ph/60 Hz
  • Available power supply : 230 V/1 Ph/50 Hz (SR1 & SR5)
  • Upper hook fixed and lower hook rotating (industrial suspension configuration)
