• Phase detection and automatic correction of the phases for all the range RIGGER.
• Standard built-in cabling for possible remote (wired or wireless) for all the range RIGGER rack 19”.
• Standard built in Master/slave functionality.
• Power supply : 400/ 415 V 3PH+N – 50/60Hz.
• Power-in plug 32 A 5p CE.
• Multi connector output one for each 4 motors.
• 24/48 Vdc control voltage.
• Short circuit protections : power & control circuit.
• Thermal protection per group of 4 motors.
• Max. power per channel : 1,8 kW / 400 V 3 PH.

Options available :

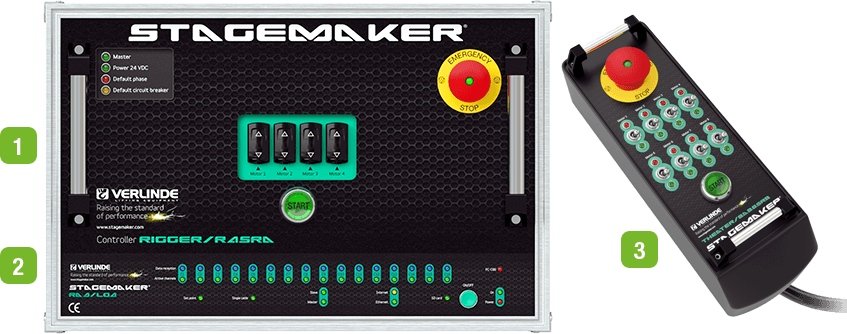

• Wired remote control : remote for 4, 8 and 12 channels controller (25 m of cable).
• Radio remote control : 32 channels radio receiver 19’’ and remote emitter for controller type R4SRA, R8SRA or R12SRA.
• Load measuring : XLR connector and 2 m cable for connection to Set point, for integration of Stagemaker Load Cell system. 19’’ rack central radio receiver for load cell.
• Flight cases : large choice of Flight case 19’’ available in Premium or Eco version, you can see here.
