Innovations

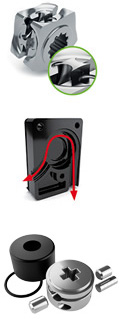

Perfect Push

New "Perfect Push", patented concept, 5 pocket load wheel, fitted with 5 intermediate teeth. This innovation provides improved chain guiding and chain flow, to help reduce the risk of chain jamming.

Chain Flux

Design provides a horizontal flow of the chain as it comes off of the load wheel. This design, along with the high strength aluminum construction, allows for a more fluid flow of the chain into the chain bag and helps reduce the risk of chain jamming. Drain in housing to avoid water collection in load wheel compartment.

Chain Flux

The Limitflux is a built-in limit switch device in the CHAINFlux MKII® that’s allow to control setting of hoist or hook position in industrial suspension or climbing configuration. Accuracy of the system is given at one link of lifting chain. The setting of the limit is operated by two magnetic ring (upper and lower) which can be easily moved and fix along the lifting chain.

Safety

  • Double lifting brake as standard for more safety. Stagemaker SR is D8+ ready (after resetting nominal load, divided by 2).
  • Clutch concept. The clutch position in the reducer ensures the load is held by the brake regardless of the machine’s daily operating conditions.
  • Electrical limit switch as standard on all hoists
    (except version A).
  • IP55 protection for the entire hoist.
  • Black electro galvanized lifting chain manufactured specifically for Stagemaker.
  • Hoist motor as integral thermal protection to prevent overheating.

Operating convenience

  • Operating sound level down to 60 db (test certificate available).
  • Climbing hoist or industrial suspension configuration can be changed simply by reversing the chain container.
  • Rotating upper and lower hooks.
  • Chaining tool delivered with every hoist.
  • High capacity and high strength chain bag made of 1100 denier, high grade black fabric, is both removable and reversible.

Savings

Maintenance operations are now simpler, faster and more economical:

  • Easy access to the torque limiter.
  • Easy access to safety fuses.
  • New concept of easily dismountable hoisting motor.
  • Easy access and removal of plug and play electronic boards.
  • Easy visual access to the brake for control.

Improved ergonomics

  • Due to oval shape the chain can't be stock on top of the motor, this reduce the risk of chain jamming.
  • The design with its flowing and refined lines draws attention to its robustness and on-board technology and gives a strong impression of integral safety.
  • The new streamlining provides STAGEMAKER SR better integration in its operating environment (lighting, loudspeakers, etc.).
  • Hoist meets ecology regulations and is RohS compliant.
  • The hoist body is powder coated with black, protective 70 µm epoxy paint, allowing it to perform under the most extreme conditions (-20C° to +50 C° / -4 to 122 degrees F).
  • Lifting hook has an ergonomic, rubber clad, gripping surface.
  • New ergonomic concept for the retractable, rubber clad handgrips, allow for easy transportation of the hoist.
