Premium : Chainrunner

The ChainRunner is used to manage power, control, audio and data cables associated with moving truss applications, eliminating the necessity for very expensive spring driven cable reels and eradicating the home made gizmos that abound in the industry.
The ChainRunner is simple to fix with no need to remove chain or hook from the chain hoist and no additional tooling is required.
Once fitted the ChainRunner cannot become disconnected from the chain whilst under load. By placing and adequate number of ChainRunners on the chain, any attached cables will neatly and safely loop in and out as the truss is moved.

  • Unique size.
  • Dimensions : 65 x 45 mm approx.
  • Weight : 142 gr approx.
  • SWL : 20 kg.
  • Manufactured from 6063 T5 Aluminium.
  • Finish : anodized aluminium.
  • Designed & Manufactured to ISO 9001-2001.

Chain dimensions:
Produce according customer request.

Hoist type:
Stagemaker SM1/SM2/SM5/SM10/SM16/20
Stagemaker SR1/SR5/SR10/SR25
Stagemaker SL5/SL10

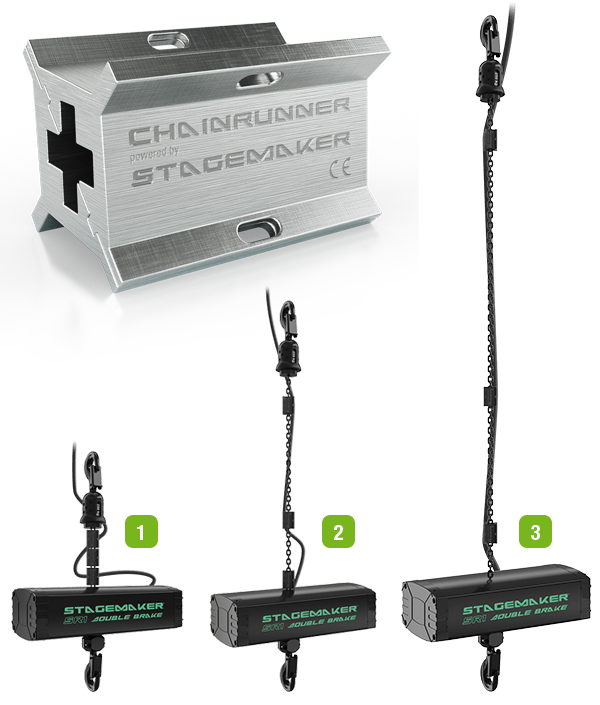

1
Chainrunner
fully retracted
2
Chainrunner
partially deployed
3
Chainrunner
fully extended

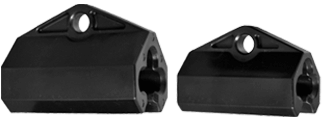

Eco : Tourslider

  • 2 models : M & L.
  • 1 fixing point (10 mm).
  • Designed to work with Industry standard hoist.
  • Made out of low friction Black polyoxymethylene (POM).
  • Tool less installation.
  • Installation w/o disassembly of the 2 plastic parts, chain or hook.
  • Not available for sales in UK and USA.

Eco : Chainslider

  • 3 models : S, M & L.
  • Dual 9 mm cable attachment points.
  • Designed to work with Industry standard hoist.
  • Made out of low friction Black polyoxymethylene (POM).
  • CE marked.
  • Not available for sales in UK and USA.
